2016-06-25: Piper PA-28-161 Cherokee Warrior II (G-SVEA) — On the A40 trunk road between Abergavenny and Raglan, Monmouthshire, GB

On the A40 trunk road between Abergavenny and Raglan, Monmouthshire, GB

On June 25, 2016, a Piper PA-28-161 Cherokee Warrior II (registration G-SVEA) was involved in an aviation accident near On the A40 trunk road between Abergavenny and Raglan, Monmouthshire, GB. Investigators recorded the probable cause as: The aircraft was allowed to drift into the trees close to the left side of the runway during takeoff. The left wing’s contact with the branches caused a yaw to the left which the instructor was unable to correct. This summary draws on records from the UK Air Accidents Investigation Branch (AAIB).

Sourcesthe UK Air Accidents Investigation Branch (AAIB)Primary reportUpdated 1785053200Data APIEditorial standards
Aircraft registered G-SVEA

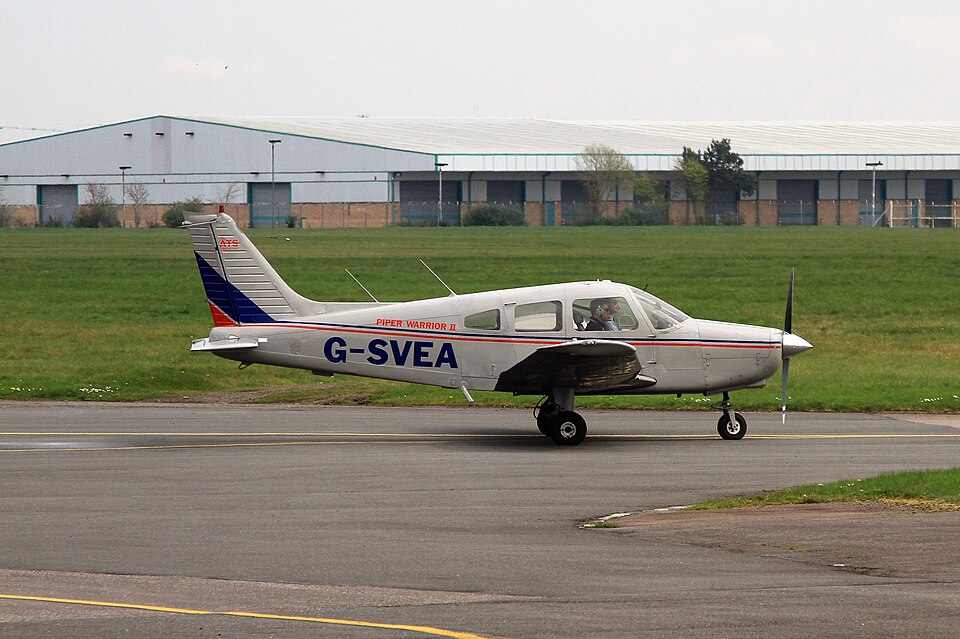

Aircraft registered G-SVEA. Photo: Rob Hodgkins / CC BY-SA 2.0, via Wikimedia Commons

During a training takeoff on Runway 33, a Piper PA-28-161 veered left into trees bordering the runway. The instructor took control but could not prevent wing contact, causing a 180° rotation. The aircraft exited backwards onto the A40 road. Both crew and passenger sustained minor injuries.

Synopsis

During a training takeoff, a Piper PA-28-161 Cherokee Warrior II (registration G-SVEA) veered left and struck trees adjacent to the runway. The aircraft then rotated through 180 degrees, exited the trees backwards, and came to rest on the A40 trunk road. Both crew members and the one passenger sustained minor injuries. The aircraft sustained substantial damage.

History of the Flight

The flight was a training sortie with a student pilot conducting the takeoff. After completing pre-takeoff checks, 10 degrees of flap were set and full power was selected. The instructor released the brakes and the takeoff roll commenced on Runway 33. As the aircraft passed over the crest of a small hill approximately halfway along the grass strip, it began to veer to the left. The left side of the runway is located close to a line of trees bordering the A40 trunk road. The instructor took control and applied right rudder and aileron in an attempt to steer away from the trees. The aircraft became prematurely airborne at around that time; the instructor pitched the nose down slightly and continued the climb, but the left wing started to contact tree branches. Despite additional right rudder and aileron inputs, the wing continued to contact branches. The instructor intended to fly the aircraft away into the circuit, but the wing continued to strike trees. A loud bang from the left wing was followed by a violent rotation through 180 degrees in a level attitude into the trees. The aircraft then exited the trees travelling backwards and landed nose-first, right wing slightly down, on the A40 trunk road. The cabin came to rest in the right-hand lane of the southeast-bound carriageway and the tail in the central reservation. No road traffic collided with the aircraft, and the occupants exited with only minor injuries.

Conclusion

The instructor assessed that the accident occurred when the aircraft was allowed to drift into the trees close to the left side of the runway during takeoff. The left wing’s contact with the branches caused a yaw to the left which the instructor was unable to correct.

Probable cause

The aircraft was allowed to drift into the trees close to the left side of the runway during takeoff. The left wing’s contact with the branches caused a yaw to the left which the instructor was unable to correct.
